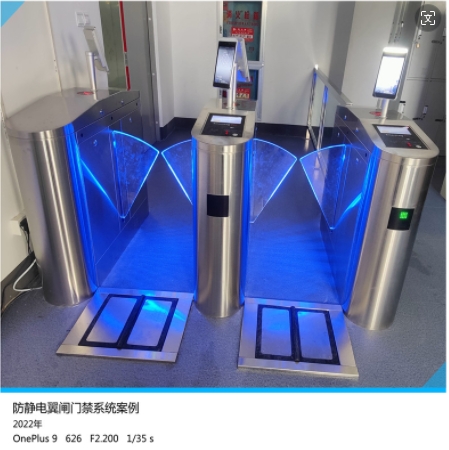

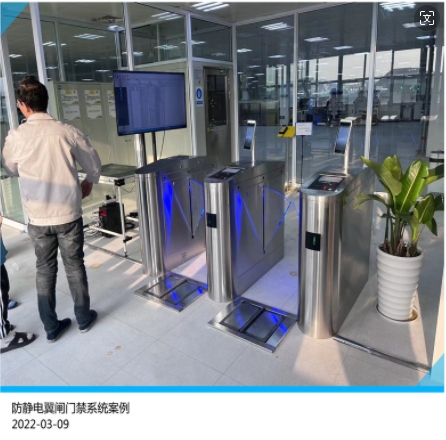

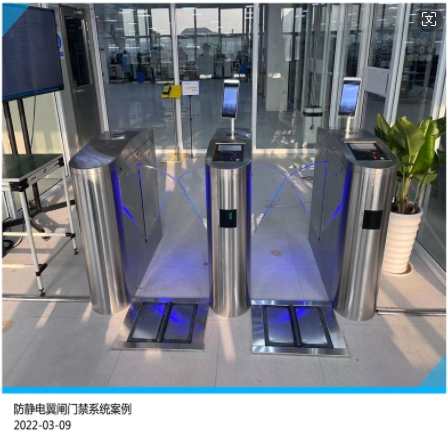

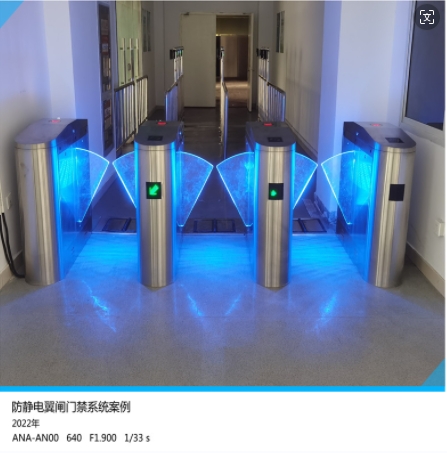

Anti-static face recognition wing gate ban system
Intelligent wing gate (block gate) is mainly for the personnel channel intelligent management of high-tech products, is the intelligent three-roll gate and swing gate upgrade products, the equipment will mechanical, electronic, microprocessor control and integration of electronic ticket system, access control and attendance system, parking lot system, face recognition system, anti-static, fingerprint, palmprint, iris and other biometric identification system integration and application.
Anti-static face recognition wing gate ban system：
1. Product overview
Intelligent wing gate (block gate) is mainly for the personnel channel intelligent management of high-tech products, is the intelligent three-roll gate and swing gate upgrade products, the equipment will mechanical, electronic, microprocessor control and integration of electronic ticket system, access control and attendance system, parking lot system, face recognition system, anti-static, fingerprint, palmprint, iris and other biometric identification system integration and application.
2. Product features
1) With fault self-test and alarm prompt function, easy to maintain and use;
2) The operating status of the device can be programmed through the built-in small press disk on the main control board;
3) Mechanical structure, induction dual anti-pinch function, in the process of resetting the telescopic arm encountered resistance, automatically stop or the motor stops working within the default time, reset again after the default delay (until reset), and the force is very small (≤2Kg);
4) Sound and light alarm function: including illegal entry, trailing alarm;
5) Anti-impact function, when the opening signal is not received, the swing arm automatically locks;
6) Telescopic arm synchronization function;
7) With automatic reset function, after opening the gate, if there is no passage within the specified time, the system will automatically cancel the user's permission to pass, and the standard is automatic reset 5 seconds after opening;
8) The channel opens automatically after power failure, and closes automatically after power failure;
9) Can be connected with a variety of reading equipment, receive relay switch signal work;
10) One-way or two-way control personnel access;
11) Remote control and management can be achieved directly through the management computer;
3. Technical parameters:
◇ Chassis material: Domestic standard (304) stainless steel
◇ Telescopic arm length: 285mm
◇ Large channel width: 600mm Standard: 550mm
◇ Drive motor: DC brush motor 50W/24V
◇ Normal service life: 5 million times
◇ Operating voltage: AC220±10%V/50±10%HZ
◇ Temperature: -10℃ -- 50℃ Relative humidity: ≤90%, no condensation
◇ Working environment: indoor, outdoor (shade)
◇ Speed: 45 people/min (normally open), 30-40 people/min (normally closed)
◇ Gate opening and closing time: 1 second
◇ Time required to enter the traffic state after power-on: 3 seconds
◇ Automatic reset time after failure: 10 seconds
◇ Communication interface: RS485 standard, communication distance: 1200 meters
◇ Input interface: relay switch signal or 12V level signal or 12V pulse signal with pulse width > 100ms, driving current > 10mA
Scope of application:
◇Station, wharf, construction site, school, supermarket entrance control management
◇Exhibition, natatorium, tourist attractions and other ticketing entrance control management
◇Enterprises and public institutions attendance, access control, consumption air access control management
◇Special air access control
