Intelligent grounding detection products(50682)
Product Introduction:
You can monitor the ground resistance of two wrist straps, two pads, or one device at the same time.
It can wirelessly transmit ground monitoring status and data collection to PC for data storage, analysis and report output.
The electronic monitoring principle is adopted, the data accuracy is less than 5%, and the monitoring object is reliably grounded (in accordance with ANSI-ESD-S20.20-2014ESD standard);
Compact and light, flexible installation and expansion;
Rewiring without personnel position adjustment;
With sound and light alarm prompt function.
Intelligent Ground detector Kit:

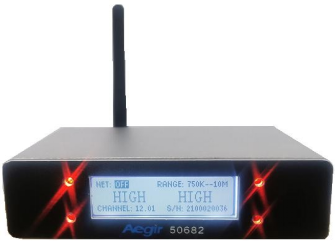

1. Ground monitor host (wrist strap/pad/device) * one model 50682
2.110~220VAC to 5VDC power adapter: 1
3. Extension end
4. Remote connector: 2 (including 2 cables connecting to the host)
5. Double string wrist strap: 3 sets
6. Host ground cable: 1 (yellow/green)
7. Workbench cable: 2 (yellow/green)
8. Accessories bag: 1 bag
9. Installation operation instructions
Basic parameters:
1. Name: Intelligent grounding monitor
2. Power supply: Input DC5V/2A
3. Wrist strap monitoring resistance: 750K to 35MΩ adjustable. The default value is 35MΩ
4. Cushion monitoring resistance: 1 ~ 100MΩ adjustable. Default 100MΩ
5. Operating environment: anti-static workshop, -10 ~ 45℃
6. Maximum power consumption: 3W
7. Indicator status: Normal - green; Abnormal - red; Standby. - Orange
8. Volume: 120 (L) *90 (W) *35 (H) mm
9. Weight: ≈0.42k g
Zigbee is a set of networking, security and application software technical standards based on 802.15.4 wireless standard approved by IEEE. Unlike other wireless standards such as 802.11 or 802.16, Zigbee and 802.15.4 carry limited data traffic at a maximum transfer rate of 250Kbps, Zigbee is a recently introduced low data rate wireless communication technology. It has the characteristics of low complexity, low cost and low power consumption, and is mainly suitable for automatic control, remote monitoring and other fields.
|
Wireless technology |
2.4G(Zigbee) |
|
Frequency band |
868M-2.4GHz (13-26 channels) |
|
Output power |
≤8dBm |
|
Harmonic wave |
-41.2dBm/MHZ |
|
Wave length |
13cm |
|
Bandwidth |
2MHZ |
|
Speed |
250Kbps |
Big Data Solutions:
Data pooling technology (using Facebook open source technology)
1. Real-time data is put into the collection pool;
2. Mirror the collected real-time data to the query pool (the record query can be kept for 7 consecutive days and the data of this month can be stored)
3. Combine multi-technical means of cross-month data sub-table storage to determine effective data storage and system response speed.
|
Software language environment |
JAVA |
|
Software architecture |
C/S |
|
Network support |
Supports network access and remote access |
|
Archive |
mysql |
|
User rights |
Super administrator, administrator, Operator |
|
ESD administrator mode |
Supports simultaneous ESD control of multiple PCS and cables |
|
Interface output |
Open database structure and output of specified data |
|
Wireless effective range |
One transceiver (gateway) has an effective area of 500m2 |
|
Transceiver load |
300 wireless monitoring points are supported within the signal range |
|
Multi-transceiver networking |
Seamless support |
|
Signal strength |
Support signal strength testing |
|
State response speed |
1-2s |
|
Network disconnection (offline) message |
When the monitoring point and transceiver signal are interrupted, the monitoring point alarm, computer alarm, ESD alarm lamp alarm. |
|
Status and data records |
Normal, abnormal state and data storage, standby, offline state storage |
|
Off-line data store |
Each independent monitoring point supports 30 minutes of offline data storage, when the signal is normal, the data starts to be transmitted back to the computer storage record (including status + monitoring value) |
|
Offline precautions |
If the monitoring point is offline for 5 minutes, the email is automatically reported to onsite ESD personnel. If the monitoring point is offline for 10 minutes, the email is automatically reported to the management personnel |
|
Abnormal mail reporting |
Continuous exceptions ranging from 1 to 10 seconds are reported at the level |
|
ESD daily statistics report |
You can periodically send ESD daily statistics reports to a specified email address |
|
Storage frequency |
1-10s is adjustable |
