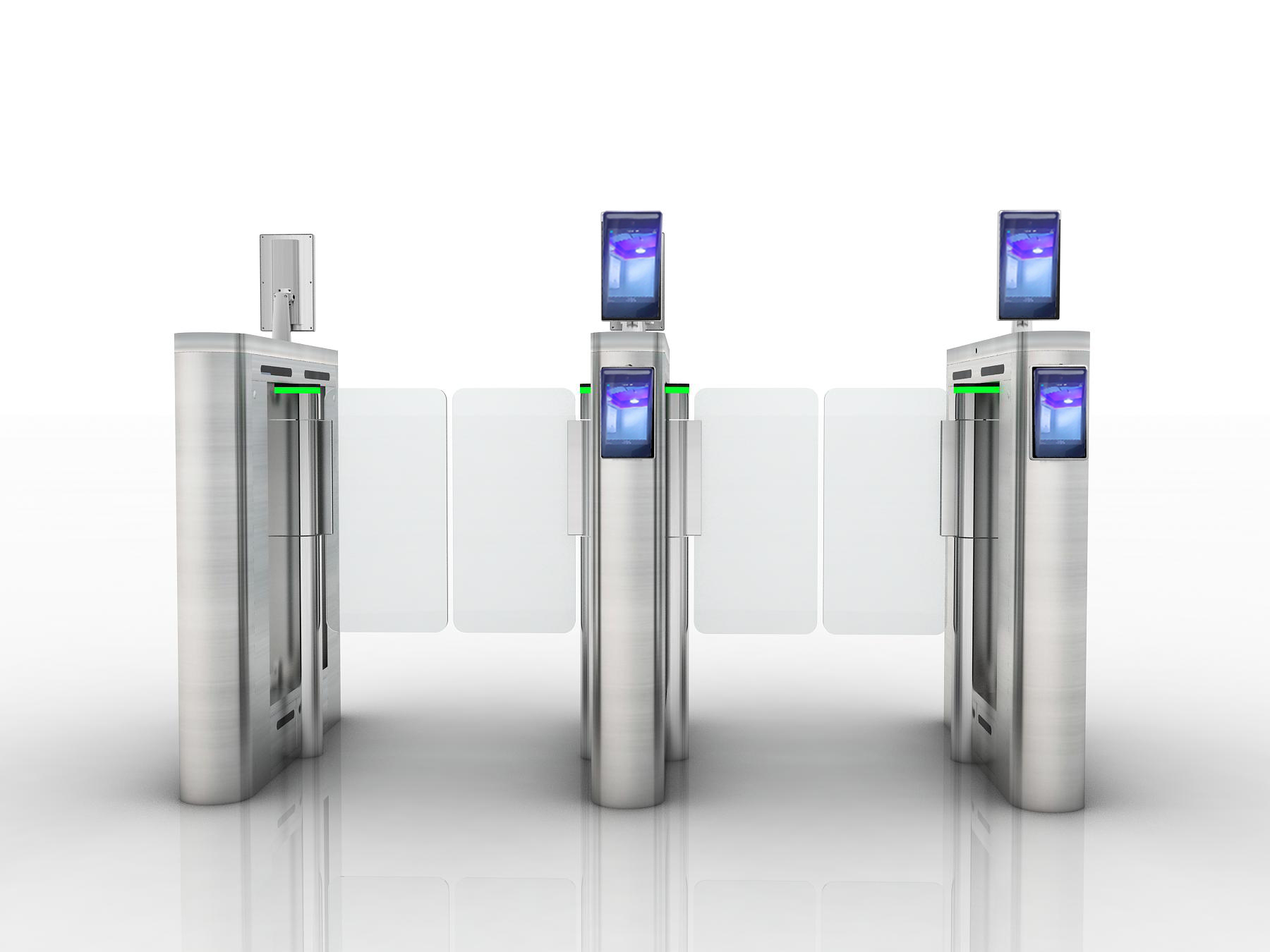

Quick pass swing gate system (brushless)
1, equipment introduction:
Intelligent swing gate is after years of careful development, development, production of intelligent channel management equipment, is mainly for personnel channel intelligent management of high-tech products. The equipment will be mechanical, electronic, microprocessor control and a variety of identity technology organically integrated, through the selection of a variety of identity system equipment and the use of reliable performance of the security protection device, alarm device, direction indication, as well as the expansion of friendly LED counting display interface, coordination to achieve intelligent control and management of the channel.
Intelligent swing gate can facilitate the use of compatible IC card, ID card, barcode card, fingerprint and other reading card identification equipment, to provide civilized and orderly access to personnel, and effectively manage personnel in and out. It can be widely used in stations, wharfs, subways, factories, buildings, intelligent communities, hotels, clubs, enterprises and institutions that need to achieve intelligent management of channels.
2. Functions and features:
2.1 Functional features of standard products
1, with zero self-check function, easy to maintain and use.
2. The operating status of the device can be programmed through the built-in small press disk on the main control board.
3, this swing brake is a new clutch DC brushless motor rotation movement.
4, CNC hall limit, accurate, efficient, low failure rate.
5, illegal entry, trailing alarm, reverse entry gate automatically closed (pedestrian procedure),
6, anti-collision function, in the absence of receiving the opening signal, swing the swing arm 10 degrees Angle, swing arm automatically lock.
7, swing arm synchronization adjustable (for double swing).
8, with automatic reset function, after opening the gate, when the pedestrian does not pass within the specified time, the system will automatically cancel the pedestrian's access authority, the reset time is adjustable for 1S ~ 20S (the system default time is 6S), after the power off, the swing arm is free to push (meet the fire requirements), and the power channel is automatically closed.
9, infrared induction reset, infrared induction anti-pinch function (optional 3-11 pairs of infrared).
10. With standard fire alarm input interface, the equipment is unconditionally opened after receiving the fire alarm signal
11. Super bright direction indicator board indicates traffic status.
12, can be connected with access control system, consumption system, electronic ticket system, biometric system, electrostatic tester and other
2.2. Standard technical parameters
Chassis material: domestic standard 304 stainless steel
Chassis size: Based on the actual product
Swing arm length: 500-900mm(center axis to side distance)
Swing arm transmission Angle: 180 degrees
Swing direction: one-way or two-way
Operating voltage: AC220 ±10% V/50 ±10% HZ50W
Drive motor: DC24V brushless DC motor
Input interface: dry contact signal
Communication interface: RS232 protocol
Speed: 40 people/min (normally open), 25-30 people/min (normally closed)
Gate opening and closing time: 1-2 seconds
Time required to enter the passable state after power-on: 5 seconds
Automatic reset time after failure: 10 seconds
Working environment: indoor, outdoor (shade)
Temperature: -10℃ ~ 50℃ Relative humidity: ≤90%, no condensation
