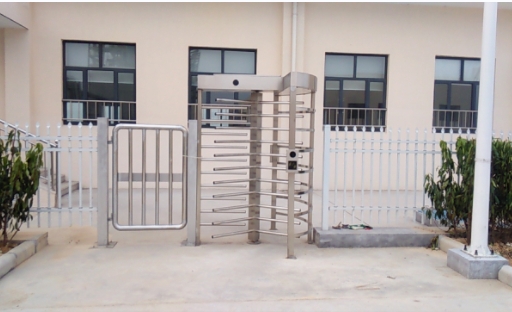

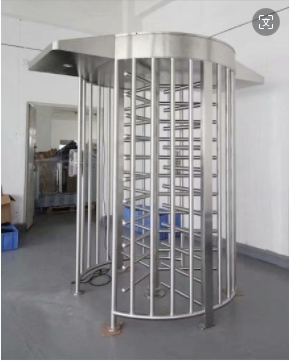

The turngate is mainly for the special place of personnel entrance and exit control management of high-tech products, the shape of the national standard stainless steel profile, beautiful, rust-proof, durable, resistant to external damage, the equipment will mechanical, electronic, microprocessor control and integration of electronic ticket system, access control test system, parking lot system, face recognition system, Integration and application of anti-static, fingerprint, palmprint, iris and other biometric identification systems.
Functional features:
1. With fault self-test function, convenient maintenance and use of users;
2. Unique two-way anti-turn function;
3. With power off two-way free passage, power automatic recovery lock function, in order to quickly organize personnel evacuation in emergency (to meet fire requirements);
4. The unique transmission system is adopted to make the intermachine lock and unlock at zero position more reliable and reliable;
5. With a unified, standard external electrical interface, can be connected with access control test system, scenic spot ticket system, biometric system, electrostatic testing instruments and other equipment, easy to integrate the system, and can achieve remote control and management through the management computer;
6. With automatic reset function: after reading, if the traffic is not passed within the specified time, the system will automatically cancel the current traffic power limit, and the restricted traffic time can be set by the manager (1S-60S);
7. The whole system has smooth selection, low noise and no maintenance.
Technical parameters:
1. Power supply voltage: AC220±10%V, 50HZ
2. Equipment driver: DC solenoid valve 24V/100W
3. Working environment temperature: -10° C-70 °C
4. Relative humidity: relative humidity ≤90%, no condensation
5. Working environment: indoor, outdoor (shade)
6. Input interface; Relay switch signal or 12V level signal or 12V pulse signal with pulse width > 100ms drive current > 10mA
7. Communication interface: RS485 electrical standard
8. Communication distance: ≤1200 meters
9. Speed: 30 people/min
10. Gate opening and closing time: 0.2 seconds
11. Normal service life: 5 million times
12. Time required to enter the passable state after power-on; 3 seconds
13. Automatic repair time: 10 seconds
Scope of application:
◇Station, wharf, construction site, school, supermarket entrance control management
◇Exhibition, natatorium, tourist attractions and other ticketing entrance control management
◇Enterprises and public institutions attendance, access control, consumption air access control management
◇Special air access control
