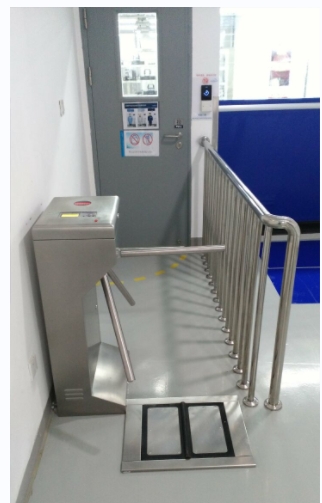

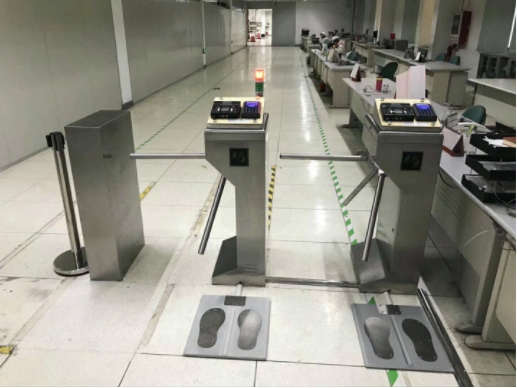

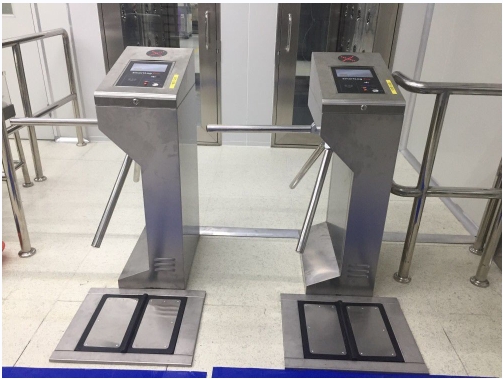

Anti-static vertical three-roll brake Bo Yuanhong HY070
The whole product shape is made of domestic standard (No. 304) stainless steel plate stamping, beautiful appearance, rust proof, durable, resistant to external damage. The passage composed of the rectangular chassis and the channel gate rod can provide orderly and civilized passage for the personnel, prevent illegal entry and exit, and quickly control the drop rod or close rod in emergency.

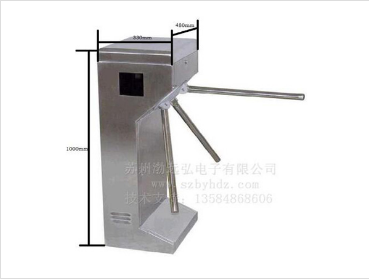

Main technical parameters:
◇ Structure: Frame structure/stainless steel shell
◇ Production process: full CNC laser cutting machine production
◇ Stainless steel thickness :1.5mm
◇ Brake rod bearing capacity: 80Kg
◇ Brake lever driving force: 3Kg
◇ Brake lever transmission mode: digital mode
◇ Brake lever steering: one-way, two-way (optional);
◇ Automatic reset function: After opening the gate, the system will automatically lock if not passed within the specified time, and the passing time can be adjusted;
◇ Light prompt: traffic direction indication
◇ The optical hole position working principle, no delay requirement for the input control signal
◇ Working environment: indoor, outdoor (shade)
◇ Temperature: -10℃ ~ 50℃ Relative humidity: ≤90%, no condensation
◇ Sensor card reading bayonet size: with standard mounting bracket, or customized
◇ Opening time: 0.2 seconds
◇ Speed: 30 people/min
◇ Communication interface: standard RS485 interface, distance ≤1200 meters
◇ Input interface: dry contact signal or +12V level signal or DC12V pulse signal with pulse width ≥100ms, driving current ≥10mA;
Three roll brake features:
1. Automatic three-roll brake:
◇ Compatible with IC, ID, magnetic card, bar code card, anti-static and other control equipment
◇ Brake lever running smoothly, low noise
◇ With power off emergency function, brake rod power off automatic drop rod, power automatically on the rod
◇ Control board with counting function, LED digital display function (optional)
◇ Control board with memory function
◇ There are standard input and output interfaces, which are system integrators
2. Semi-automatic three-roll brake:
◇ Compatible with IC, ID, magnetic card, bar code card, anti-static and other control equipment
◇ Brake lever unlock, fast and reliable
◇ With power emergency function, brake rod power off automatically drop rod, power hand lift rod
◇ Control board with counting function, LED digital display function (optional)
◇ Control board with memory function
◇ There are standard input and output interfaces, which are system integrators
3, mechanical three-roll brake:
◇ Unique positioning and reset system: automatic reset, can always keep a rod in a horizontal position
◇ It is a pure mechanical transmission product, no electronic control operation, with simple structure and high reliability
◇ No maintenance and other features, suitable for unidirectional current limit management places
Scope of application:
◇Station, wharf, construction site, school, supermarket entrance control management
◇Exhibition, natatorium, tourist attractions and other ticketing entrance control management
◇Enterprises and public institutions attendance, access control, consumption air access control management
◇Special air access control
