The channel gate developed by Suzhou Boyuanhong Electronics Co., Ltd. can be compatible with IC card, ID card, barcode card, fingerprint, face recognition and other reading card identification equipment, which can facilitate the provision of civilized and orderly access for personnel, and effectively manage personnel in and out. It can be widely used in stations, wharfs, subways, factories, buildings, intelligent communities, hotels, clubs, enterprises and institutions that need to achieve intelligent management of channels.
Now with the development of science and technology, the channel gate can also recognize the face, so as to decide whether to let people pass. Channel gate face recognition is considered to be one of the most difficult research topics in the field of biometrics and even artificial intelligence. The difficulty of face recognition is mainly caused by the characteristics of face as a biological feature.
The visual characteristics of human face are:
First, the difference between different individuals is not large, the structure of all faces are similar, and even the structural appearance of face organs is very similar. Such characteristics are advantageous for the use of face positioning, and the channel gate system can be developed in an all-round way through this surface.
Second, the shape of the face is very unstable, people can produce a lot of expressions through the change of the face, and in different viewing angles, the visual image of the face is also very different, in addition, face recognition is also affected by lighting conditions (such as day and night, indoor and outdoor, etc.), many covers of the face (such as masks, sunglasses, hair, beard, etc.), age and other factors. Channel gate face recognition technology can eliminate the difficulties in this aspect one by one, so as to achieve the ideal application effect.
Channel gate:
Now the channel gate face recognition technology is becoming more and more mature and the development prospects are more and more considerable, and the current application in China is also rapidly popular.
Channel gate and IC card reader combined to form an intelligent channel gate integrated management system, can achieve access control, attendance, charging and other functions. We can usually set up a set of gate at the entrance of a large conference place, which can facilitate the attendance of participants, statistics and inquiries of conference management personnel; It provides an easy solution for the effective control and management of participants' access and attendance. At the same time, it also politely refused the entry of non-participants to ensure the order of the meeting. It greatly reduces the work burden of conference service personnel and will greatly improve the work efficiency of the exhibition.
Second, the wing brake description:
1. Equipment introduction

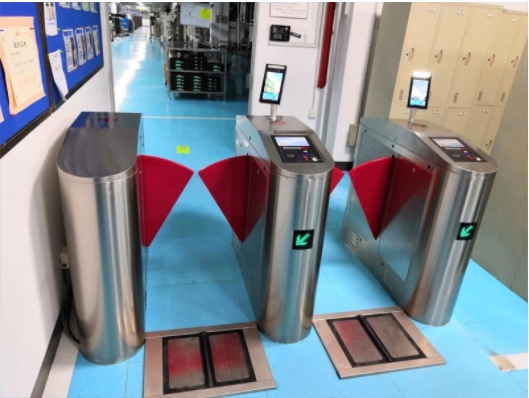

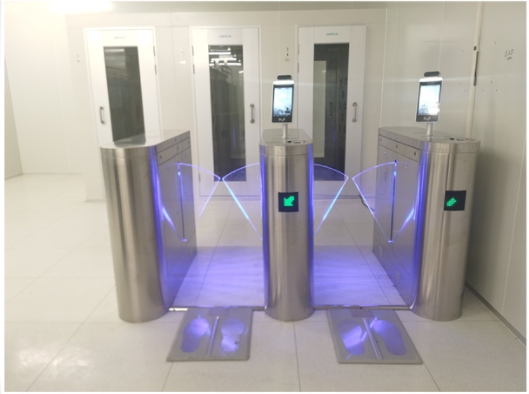

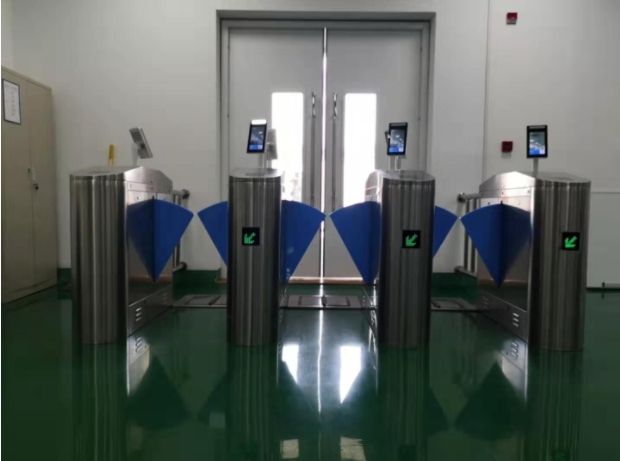

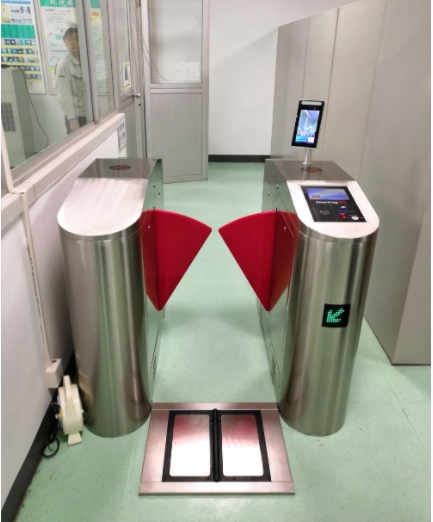

Bridge Angle wing gate (block gate) is mainly for personnel access intelligent management of high-tech products, is the intelligent three-roll gate and swing gate upgrade products, the product processing fine, complete functions, high grade, mainly used in high-end residential areas, intelligent buildings, hotels, subways, docks, clubs and other high-end places.
The equipment will be mechanical, electronic, microprocessor control and a variety of identity identification technology organically integrated, convenient compatible with IC card, ID card, barcode card, fingerprint and other card reading identification equipment to use, through the selection of a variety of identity system equipment and the use of reliable performance of the security protection device, alarm device, direction indication, coordination to achieve intelligent control and management of the channel.
Divided into:
Single movement: for single channel and multi-channel;
Dual movement: for multiple channels；
2. Main functions and characteristics
2.1 Features of standard products:
1) With fault self-test and alarm prompt function, easy to maintain and use;
2) The operating status of the device can be programmed through the built-in small press disk on the main control board;
3) Mechanical structure, induction dual anti-pinch function, in the process of resetting the telescopic arm encountered resistance, automatically stop or the motor stops working within the default time, reset again after the default delay (until reset), and the force is very small (≤2Kg);
4) Sound and light alarm function: including illegal entry, trailing alarm;
5) Anti-impact function, when the opening signal is not received, the swing arm automatically locks;
6) Telescopic arm synchronization function;
7) With automatic reset function, after opening the gate, if there is no passage within the specified time, the system will automatically cancel the user's permission to pass, and the standard is automatic reset 5 seconds after opening;
8) The channel opens automatically after power failure, and closes automatically after power failure;
9) Can be connected with a variety of reading equipment, receive relay switch signal work;
10) One-way or two-way control personnel access;
11) Remote control and management can be achieved directly through the management computer;
2.2 Extendable functions:
1) Counting function;
2) Chassis lengthening, telescopic arm material selection.
3. Main structure and configuration
◇ Standard chassis 2
◇ Two telescopic arms
◇ Main control board 2 pieces
◇ 2 transformers
◇ 2 motors
◇ 2 sets of movement and transmission parts
◇ Infrared beam 3 pairs
◇ Direction indicator board 2 pieces
4, standard technical parameters
◇ Chassis size: 1400 L *300 W *1000 H (MM)
◇ Telescopic arm length: 285mm
◇ Large channel width: 600mm Standard: 550mm
◇ Chassis material: Domestic standard (304) stainless steel
◇ Power supply voltage: AC220±10% V,50±10%HZ
◇ Drive motor: DC brush motor (50W/24V)
◇ Input interface: relay switch signal or 12V level signal or 12V pulse signal with pulse width > 100ms, driving current > 10mA
◇ Normal service life: 3 million times without failure rate
◇ Communication interface: RS485 standard
◇LED indicator: 2
◇ Card window: 4
◇ Access port :4
◇ Speed: 30-40 people/min
◇ Gate opening and closing time: 1 second
◇ Time required to enter the traffic state after power-on: 3 seconds
◇ Automatic reset time after failure: 10 seconds
◇ Working environment:
Indoor, outdoor (shade)
Temperature: -10℃ -- 50℃
Relative humidity: ≤90%, no condensation
Scope of application:
◇Station, wharf, construction site, school, supermarket entrance control management
◇Exhibition, natatorium, tourist attractions and other ticketing entrance control management
◇Enterprises and public institutions attendance, access control, consumption air access control management
◇Special air access control

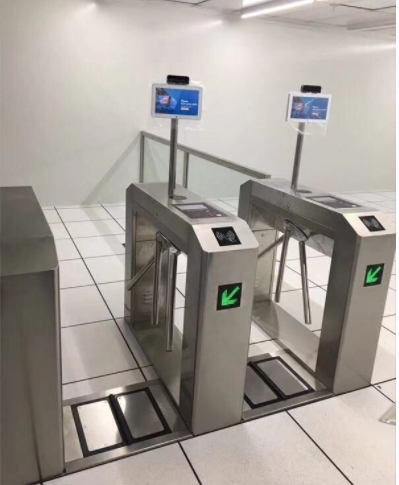

◇ ESD workshop and other access control management
