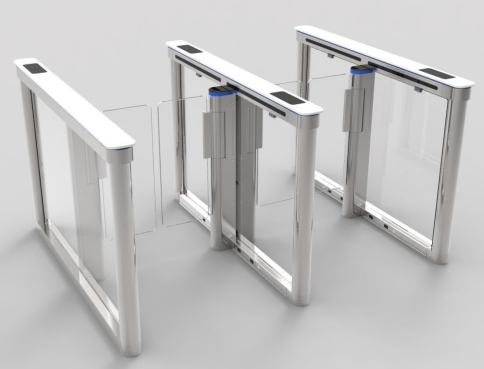

Intelligent speed swing brake:
Intelligent speed gate is a high-tech product mainly for the intelligent management of personnel channels, using imported ARM processing chip
Line brushless motor control and channel logic management. Support up to 16 pairs of independent infrared control, 6 independent light control management, can control swing gate, wing gate, speed gate, three roller gate, full height, half height brake machine logic; All devices are managed with multiple anti-pinch designs (current, infrared, encoder, motor status) to ensure the safety of passers-by.
The product has fine processing, complete functions and high grade, mainly used in high-end residential areas, intelligent buildings, hotels, subways, docks, clubs and other high-end places.
The device integrates mechanical, electronic, microprocessor control and various identification technologies organically to facilitate the use of biometric identification devices such as IC card, ID card, ID card reader, scanner, fingerprint, face, iris, vein, etc., through the selection of various identification system equipment and the use of reliable security protection devices, alarm devices, direction indications, etc. Coordinate to realize the intelligent control and management of channels.
Single movement: for single channel and multi-channel;
Dual movement: for multiple channels
2. Functions and Features:
1, limit mode: encoder, infrared, Hall (motor comes with);
2, opening speed: speed gate <0.3S;
3, lock mode: motor electronic lock, electromagnetic clutch lock;
4, access mode: swipe card in and out, swipe card in free out, free into card out, free into and out;
5, switching mode: RS485 /IO (relay signal: dry contact signal);
(Please contact sales in advance for items requiring 485 communication function)
6, opening mode: normal opening, emergency normal opening;
7. Power off and switch off function: no need to connect the external battery can automatically switch off;
8, support the number of infrared: 3-16 pairs (infrared number can be configured according to customer needs);
9, light control: 6 independent light control (middle light, entrance light, exit light or LED light bar);
10, power off switch function: no need to connect the external battery can be switched off after power off;
11, power on automatic change, automatic learning alignment function;
12, with zero self-test and alarm prompt function, easy to maintain and use;
13. The operating status of the device can be programmed through the built-in small press disk on the main control board;
14, anti-clip function: mechanical anti-clip, infrared anti-clip;
15, illegal entry, following the alarm and immediately shut down;
16, anti-collision function, when no opening signal is received, the baffle automatically locks;
17, swing arm (gate) synchronization function;
18. With automatic reset function, the system will automatically cancel the user's permission to pass within the specified time after the switch is turned on. The reset time is adjustable from 1S to 60S (the system default time is 10S).
19, can be connected with a variety of card reading equipment.
20, one-way or two-way control personnel in and out.
21, can be directly through the management computer to achieve remote control and management.
22, counting function.
23, voice prompt and sound and light alarm.
3. Standard technical parameters：
Chassis size: Please refer to the company website and the actual product for the telescopic arm length: 300-430mm
Maximum channel width: 900mm
Chassis material: domestic standard 304 stainless steel or 45# steel surface color processing Power supply voltage: AC220±10% V,50HZ
Drive motor: 24V brushless DC motor
Input interface: dry contact signal or 12V level signal, driving current > 10mA Normal service life: more than 5 million times
Communication interface: RS485 Standard reading card window: 2
Access ports: 4
Traffic speed: 40-60 people/min Gate opening and closing time: 0.4 seconds
Time required to enter the passable state after power-on: 3 seconds
Working environment: indoor, outdoor (shade), temperature: -10℃ ~ 50℃, relative humidity :≤90%, no condensation
