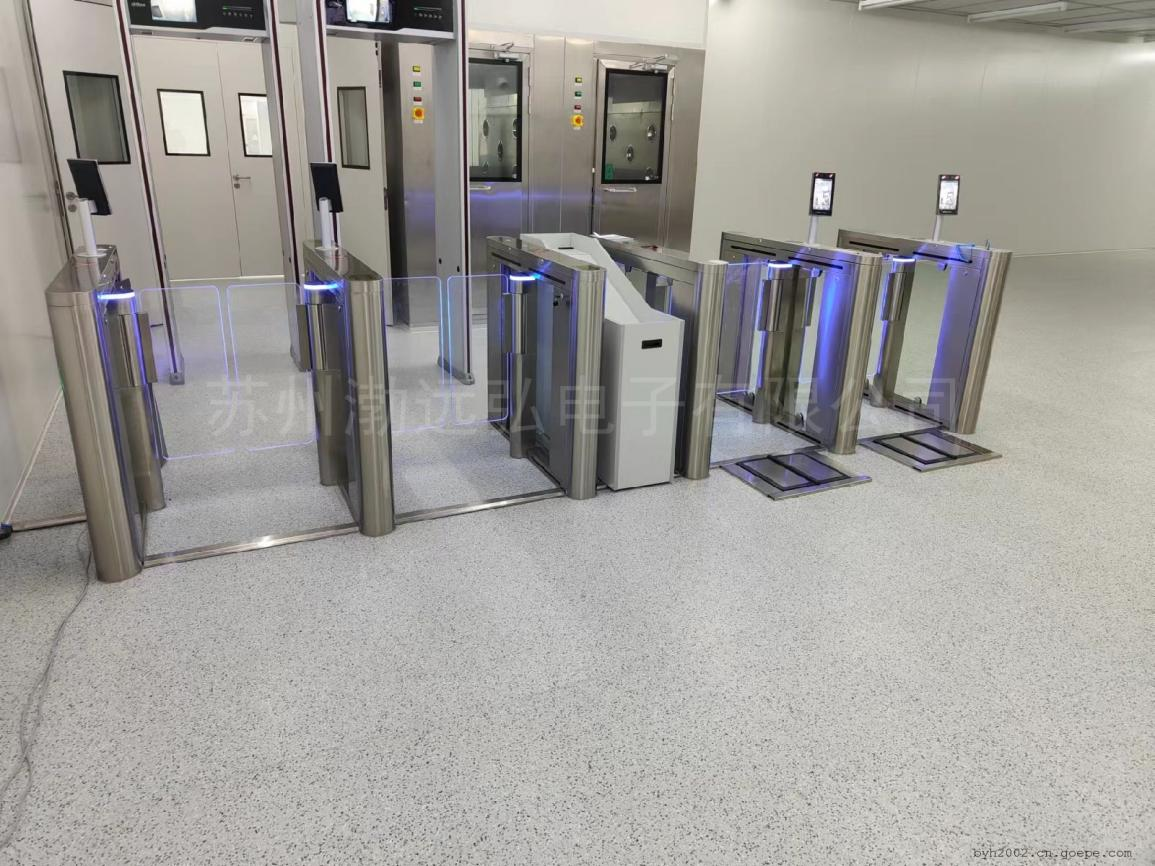

Face recognition swing gate ban
Product Overview:
The exterior of the intelligent swing gate is stamped with national standard 304 stainless steel material, which is an intelligent entrance and exit control equipment carefully developed, developed and produced for many years. The equipment will control and integrate the electronic ticket system, access control and attendance system, parking lot system, anti-static, fingerprint, palm print, iris and other biometric identification systems.
Functional features:
1, with fault self-test and alarm prompt function, convenient for user maintenance and use.
2. The operating status of the device can be programmed through the built-in small press disk on the main control board.
3, anti-pinch, anti-collision function, in the process of swing arm reset encountered resistance, the motor automatically stops working within the specified time, the default delay is reset again (until reset), and the strength is very small (less than or equal to 2kg)
4, anti-impact function, when there is no opening signal, the swing arm automatically locks
5, swing arm synchronization adjustable (for double swing)
6, with automatic reset function, after opening. If the user does not pass within the specified time, the system will automatically cancel the user's permission to pass this time
7, can be freely adjusted normally open or normally closed to meet the requirements of different sites
8, can be connected with a variety of card reading equipment
9, one-way, two-way pendulum function, can be one-way or two-way control personnel in and out
10, can directly through the management computer to achieve remote control and management
11, Delay automatic reset, the system default is 10 seconds after the automatic reset
12, power off swing arm automatically swing open, power on automatically closed. Meet fire requirements
Technical parameters:
Material: Box type: National standard 304 stainless steel; Cylindrical: No. 304 /2.0 and 1.0 stainless steel housing
Swing arm length: 600-900mm Standard: 600mm
Swing arm rotation Angle: 180 degrees
Swing direction: one-way or two-way
Drive motor: DC brush motor 50W/24V
Normal service life: 5 million times
Operating voltage: AC220+/-10%V 50+/-10%HZ
Temperature: -10 degrees Celsius --50 degrees Celsius Relative humidity: less than or equal to 90%, no condensation
Working environment: indoor, outdoor (shade)
Speed: 45 people/min (normally open), 30-40 people/min (normally closed)
Gate opening and closing time: 1 second
Time required to enter the passable state after power-on: 3 seconds
Automatic reset time after failure: 10 seconds
Communication interface: RS485 standard distance is less than or equal to 1200 meters
Input interface: dry contact signal or 12V level signal or 12V pulse signal with pulse width equal to 100ms, driving current greater than or equal to 10mA
Device performance (Face Recognition)
8 inch flat panel face recognition device at night infrared, RGB double fill light; Dynamic dual camera anti-counterfeiting, completely solve the deception of all kinds of photos on various carriers; When the face library is 10000, the 1:N recognition accuracy rate is 99.9% under the condition of 1/10,000 error rate.
The device can store 10,000 database locally
(a) The cloud platform device supports the simultaneous storage of 10,000 face photos (less than 400KB), 1 million identification records (0.45KB), and 10,000 on-site photos;
(b) LAN equipment supports the simultaneous storage of 10,000 face photos (calculated as 100KB of photos) and 1 million identification records (including the latest 10,000 field photos).
Fast recognition speed
(a) Face detection takes about 120ms;
(b) Face feature extraction takes about 150ms;
(c) Face comparison takes 10ms(100,000 people, multiple identification average).
After the face recognition is successful, the gate is opened and the personnel can enter. If face recognition fails, the gate cannot be opened. The software is standard and can import and export personnel information and access records.
Scope of application:
◇Station, wharf, construction site, school, supermarket entrance control management
◇Exhibition, natatorium, tourist attractions and other ticketing entrance control management
◇Enterprises and public institutions attendance, access control, consumption air access control management
◇Special air access control
