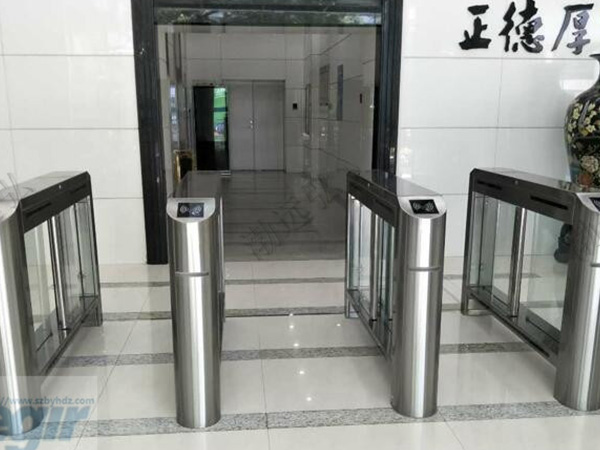

High-grade arc swing brake
The outer box of the whole product adopts domestic standard 304 stainless steel plate stamping. The swing gate can provide an orderly and civilized way of passage, prevent illegal entry and exit, smooth operation of the swing arm and low noise. Swing gate can be integrated with various access control devices, such as ID card, IC card, barcode card, mobile phone SIM, access control, fingerprint machine, palm meter, face recognition and other recognition methods.
◆ Swing gate appearance is beautiful and generous, rain proof, moisture proof, rust proof, durable.
◆ Swing brake 1 year machine free warranty, lifetime maintenance.
◆ Swing arm synchronization function (double swing).
◆ Swing brake with fault self-test and alarm prompt function, convenient user maintenance and use.
◆ Power off swing arm automatically swing open, power on automatic closing, in line with fire requirements.
◆ Swing gate has a variety of working modes to choose from, you can read the card in both directions, you can also read the card and ban the other direction, while reading the card and free passage in the other direction, and the working mode of the gate can be set through the motherboard menu.
◆ Swing brake the whole system runs smoothly, low noise.
◆ Swing gate has 485 remote control opening and closing function to meet the special needs of users and fire safety requirements.
◆ Swing brake anti-impact function, when no opening signal is received, swing arm automatically locks.
◆ Swing brake anti-pinch, anti-collision function, in the process of swing arm reset encountered resistance, the motor automatically stops working within the specified time, default delay again.
◆ With reset function, after opening the gate, in the specified time is not passed, the system will automatically cancel the user's permission to pass and automatically closed.
◆ Can be adjusted normally open or normally closed to meet the requirements of different sites.
◆ Induction or delay automatic reset, the standard is 5 seconds after opening (adjustable) automatic reset.
◆ Can be connected to the external switch button or remote control, to achieve one-way or two-way control traffic.
◇ Swing brake structure: stainless steel chassis, swing arm, motor, movement and transmission part, control board, etc.
◇ Brake machine process: bending, cutting, welding, polishing, grinding, etc.
◇ Swing arm length: 600mm;
◇ Weight: about 80Kg;
◇ Maximum bearing capacity of swing arm: 60Kg;
◇ Swing arm transmission Angle: 180 degrees;
◇ Maximum channel width: 1200mm;
◇ Swing direction: one-way, two-way;
◇ Working environment: indoor, outdoor (preferably canopy);
◇ Ambient temperature :-30℃ ~ 50℃;
◇ Input interface: relay switch signal (COM port for ground);
◇ Working power supply: Power supply voltage: input AC220V±10%, output DC24V, DC12V;
◇ Motor power: DC motor 100W/24V;
◇ Motor speed: 1600 RPM;
◇ Relative humidity: less than 95% (no condensation);
Communication interface: Communication interface: RS485 (distance ≤1200 meters) or TCP/IP;
◇ Speed: 40 people/min (normally open); 25-30 persons/min (normally closed);
◇ Gate opening and closing time: 1-2 seconds;
◇ Time required to enter the traffic state after power-on: 3 seconds;
◇ Fault automatic reset time: 10 seconds;
◇ Mechanical life: more than 3 million times;
◇ Support card reader: bar code, ID/IC card, RFID card, second-generation ID card;
Swing brake application scope:
★ Transportation station: high-speed rail station, subway station, airport, dock, train station, bus station, ferry.
★ Office: prisons, government agencies, business buildings, detention centers, detention centers, drug rehabilitation centers.
★ Science and education units: libraries, colleges and universities, research institutes, kindergartens.
★ Commercial places: banks, hotels, supermarkets, exhibition centers, villas, residential areas.
