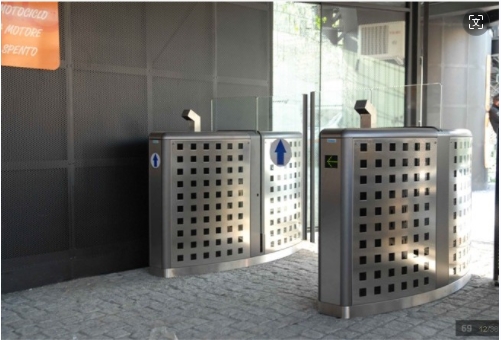

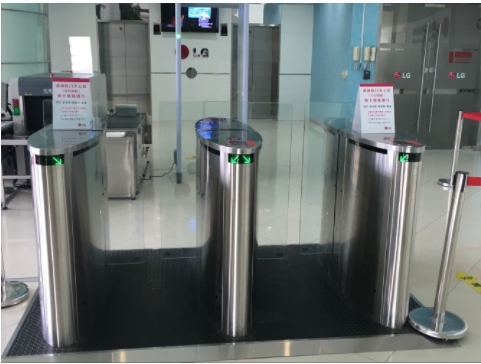

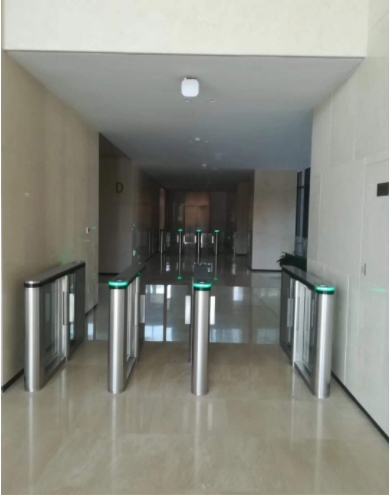

Intelligent translation gate is mainly used to prevent pedestrians from illegally drilling or climbing through the place of the implementation of entrance and exit control management of high-tech products, the shape of the national standard stainless steel profile, fine technology, complete functions, beautiful, rust-proof, durable, resistant to external damage, the equipment will mechanical, electronic, microprocessor control and integrated electronic ticket system, access control test system, Integration and application of parking system, face recognition system, anti-static, fingerprint, palm print, iris and other biometric identification systems.
Functional features:
1. With fault self-test and alarm prompt function, easy to maintain and use;
2. The operating status of the device can be programmed through the built-in small press disk on the main control board;
3. Mechanical structure anti-clip, anti-collision function, in the case of anti-clip infrared is covered, the swing arm automatically opens again to prevent clamping to people or items, the default delay after reset (until reset), and the force is very small (≤2Kg);
4. Anti-impact function, when no opening signal is received, the door body automatically locks;
5. Door body synchronization adjustable (for double gates);
6. With automatic reset function, the system will automatically cancel the user's permission to pass within the specified time after opening the room;
7. Adjustable normally open or normally closed to meet the requirements of different sites;
9. Can be connected with a variety of reading equipment, receive relay switch signal work;
10. Unit to or two-way control personnel in and out;
11. Remote control and management can be achieved directly through the management computer;
12. Delay automatic reset, the standard is 3 seconds after opening automatic reset;
13. Power door body automatically open, power automatically closed, in line with fire requirements.
14. Sound (light) alarm function, including illegal entry alarm (reverse entry switch), etc.;
15. Counting function (optional);
16. Anti-clip function (2 pairs of infrared);
17. Accurate logic judgment, infrared reset function (6 pairs of infrared)
18. Voice output, humanized prompt correct passage (optional));
19. You can use the remote control to set the brake machine to operate in the normally open or normally closed state;
20. There is a light indicator at the door (color can be customized according to customer requirements).
Technical parameters:
1. Chassis material: domestic standard (No. 304) stainless copper thickness 1.5mm
2. In and out direction: Unit direction or two-way
3. Working voltage: AC220 10%v/ 50%Hz
4. Drive motor: DC brush motor (24v)
5. Input interface: dry contact signal or 12V level signal or 12V pulse 1 medium signal with pulse width ≥100ms, driving current ≥10mA
6. Communication interface: RS485 standard distance height ≤1200 m
7.LED indicator: 2
8. Read card window: 2
9. Working temperature: -10℃ -50 ℃
10. Relative humidity :≤90%, no condensation
11. Working environment: indoor, outdoor (shade)
12. Speed: 40 people/min (normally open), 25-30 people/min (normally closed)
13. Gate opening and closing time: 1-2 seconds
14. Time required to enter the passable state after power-on: 3 seconds
15. Automatic reset time after failure: 10 seconds
Scope of application:
◇Station, wharf, construction site, school, supermarket entrance control management
◇Exhibition, natatorium, tourist attractions and other ticketing entrance control management
◇Enterprises and public institutions attendance, access control, consumption air access control management
◇Special air access control
