50556 Network intelligent anti-static ESD three-roll gate forbidden channel

50556 Network intelligent anti-static ESD three-roll gate forbidden channel

AEGIR50556 Electrostatic meter Description:

AEGIR50556 intelligent electrostatic tester is used to test whether electrostatic bracelets and ankle bracelets meet the standards of electrostatic protection tools, and generate electronic files combined with personnel identification cards and upload them to the server, which is convenient for customers' audit and production department management. AEGIR50556 is a precision test instrument that needs to be corrected regularly.
Electrometer features:

1. Support network communication, can upload 60,000 records in less than 14S

2. Online upgrade through the network (cross-domain upgrade)

3. All parameters are set on a PC and can be controlled remotely

4. With perpetual calendar accurate timing, can be automatically timed through the network

5. 60,000 brush card records, 10 million blacklist capacity, and power failure data is not lost

6. Abundant I/O ports for controlling other external devices

7. Used by large enterprises and tested by mass data, the performance is stable and reliable
Basic specifications of electrometer:

Physical parameters of electrometer:

Environmental parameters of electrometer:

Measuring standard of electrometer:

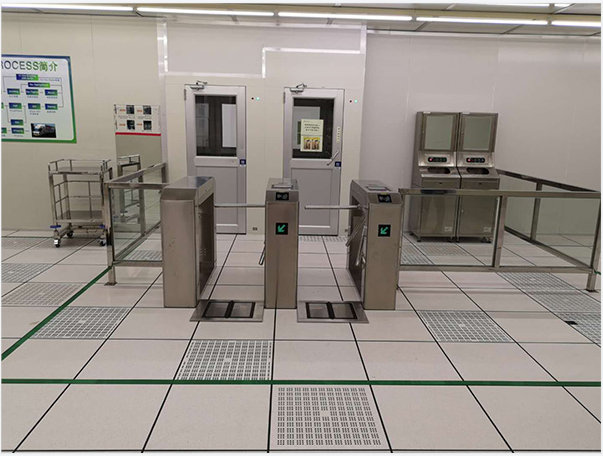

ESD three roller brake details:

The whole product shape is made of domestic standard (No. 304) stainless steel plate stamping, beautiful appearance, rust proof, durable, resistant to external damage. The passage composed of the rectangular chassis and the channel gate rod can provide orderly and civilized passage for the personnel, prevent illegal entry and exit, and quickly control the drop rod or close rod in emergency.
Main technical parameters:

◇ Structure: Frame structure/stainless steel shell

◇ Production process: full CNC laser cutting machine production

◇ Dimensions: Length 1200× width 280× height 980 (mm)

◇ Weight: 70Kg

◇ Brake lever length: 510(mm) outside the chassis

◇ Maximum bearing capacity of brake rod: 80Kg

◇ Brake lever driving force: 3Kg

◇ Brake lever transmission mode: digital mode

◇ Brake lever steering: one-way, two-way (optional); With a variety of working modes to choose from, can be two-way reading card limit, can also read the card on one side, the other direction ban; Read the card on one side, go free in the other direction

◇ Automatic reset function: After opening the gate, the system will automatically lock if not passed within the specified time, and the passing time can be adjusted;

◇ Light prompt: traffic direction indication

◇ The optical hole position working principle, no delay requirement for the input control signal

◇ Working environment: indoor, outdoor (shade)

◇ Temperature: -10℃ ~ 50℃ Relative humidity: ≤90%, no condensation

◇ Sensor card reading bayonet size: with standard mounting bracket, or customized

◇ Opening time: 0.2 seconds

◇ Speed: 30 people/min

◇ Communication interface: standard RS485 interface, distance ≤1200 meters

◇ Input interface: dry contact signal or +12V level signal or DC12V pulse signal with pulse width ≥100ms, driving current ≥10mA;

Import and export of data:

Personnel card number data import

Since the company has installed the personnel system, attendance system, etc., employees have a sensor card, these systems have recorded personnel information, card number and other information, in order to avoid the ESD access control system in the secondary input of these information, we can export text files from the personnel system, the file should contain ESD access control necessary information, Such as job number, name, department, card number, etc., and then complete the initialization and update of the data through the import function of ESD access control software. The import module must ensure that the access control Settings made in the ESD access control software can still be retained after the import operation, and this part of the work will be customized by our company.

This import and export process is similar to the acquisition of attendance data, so it can be more smoothly integrated into the company's management process.

Export of incoming and outgoing data:

The flow record of employees entering and leaving the channel can also provide necessary information for the company's management, and some companies directly use the entry and exit record of the channel as an employee's attendance. The system designed in this scheme also has this function, according to customer needs, we can add modules for ESD access control management software, so that the entry and exit records directly into the target database, or export files for other systems.
Performance parameters:

Digital design, accurate data, rich interface

Test switch adopts touch design, easy to use, long life

The test items can be programmed and selected by the central controller

Electrostatic test results have a variety of output methods: LED display, sound prompt, programmed digital output to provide a central controller control basis

The tester adopts 100V micro-current test, and the test is stable and accurate

The ankle has an extended measuring range: 750KΩ - 1GΩ
