Product parameters:
ESD three-roll gate anti-static access control
Electrostatic tester 19270 Instrument characteristics
§ : At the same time test the human body through the wrist strap, left shoe, right shoe grounding is qualified.
§ : You can test both single-string and double-string wrist straps.
§ : You can choose to test only wrist straps or anti-static shoes.
§ : Short test time, quickly display wrist strap, / left/right shoe test results.
§ : Meets * new ANSI/ESD S20.20-2007 standard.
§ : User can set upper/lower thresholds to comply with ANSI(American standard) or IEC(International standard)
§ : Solid state test keys to avoid further damage to keys.
§ : Key blue background light indicates operation status.
§ : Relay on/off signal control access control.
§ : Optional infrared sensor grip for wearing gloves/or finger covers for testing.
Three roll brake types:
Semi-automatic three-roll brake
① Power needs to be manually on the pole
② After opening the brake completely rely on the hand or body push rod forward.
③ Brake rod electromagnet, ten positioning disc lock, only three position points.
④ No power drive, can not prevent trailing.

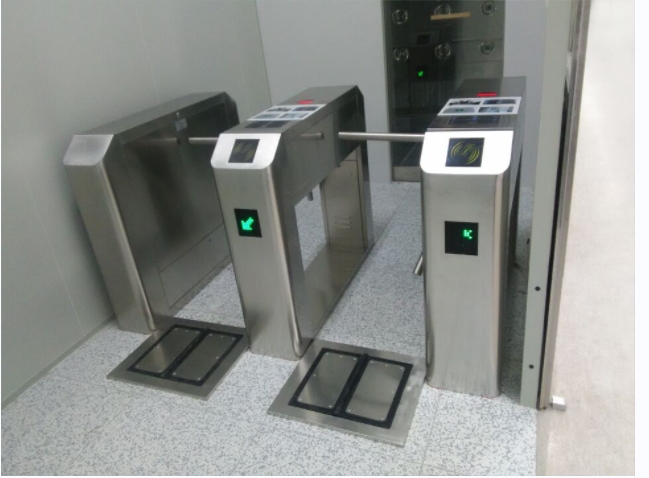

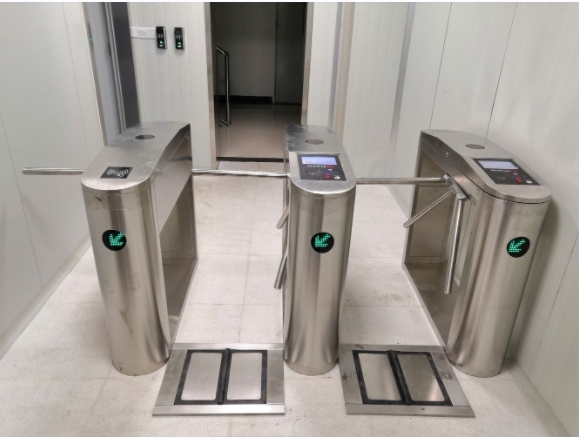

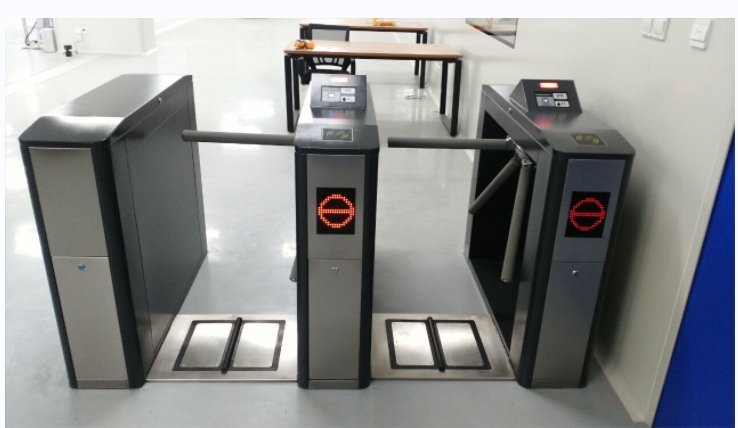

ESD three roller brake details:
The whole product shape is made of domestic standard (No. 304) stainless steel plate stamping, beautiful appearance, rust proof, durable, resistant to external damage. The channel composed of rectangular chassis and channel gate rod can provide orderly and civilized way for exit and entry personnel, prevent illegal entry and exit, and quickly control the drop rod or close rod in emergency.
Main technical parameters:
◇ Structure: Frame structure/stainless steel shell
◇ Production process: full CNC laser cutting machine production
◇ Dimensions: Length 1200× width 280× height 980 (mm)
◇ Weight: 70Kg
◇ Brake lever length: 510(mm) outside the chassis
◇ Brake lever * Maximum bearing capacity: 80Kg
◇ Brake lever driving force: 3Kg
◇ Brake lever transmission mode: digital mode
◇ Brake lever steering: one-way, two-way (optional); With a variety of working modes to choose from, you can two-way reading card limit, you can also read the card, the other direction ban, while reading the card, the other direction free passage
◇ Automatic reset function: After opening the gate, the system will automatically lock if not passed within the specified time, and the passing time can be adjusted;
◇ Light prompt: traffic direction indication
◇ The optical hole position working principle, no delay requirement for the input control signal
◇ Working environment: indoor, outdoor (shade)
◇ Temperature: -10℃ ~ 50℃ Relative humidity: ≤90%, no condensation
◇ Sensor card reading bayonet size: with standard mounting bracket, or customized
◇ Opening time: 0.2 seconds
◇ Speed: 30 people/min
◇ Communication interface: standard RS485 interface, distance ≤1200 meters
◇ Input interface: dry contact signal or +12V level signal or DC12V pulse signal with pulse width ≥100ms, driving current ≥10mA;
