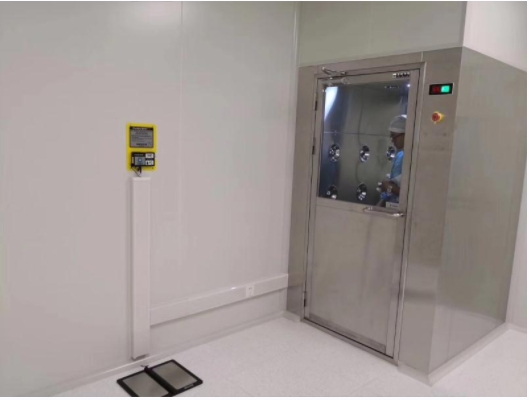

Anti-static air shower room
Air shower can reduce the air pollution caused by staff and production materials entering and leaving the clean room. The door of the air shower room is electronically interlocked, which can double as an air lock room to prevent the outside air from entering the clean room, and reduce the pollution of the outside air to the clean room during the process of entering and leaving the clean room.
The role of air shower:
When the personnel enter the air shower room, the high-speed clean air is filtered by the medium and high efficiency filter and then sprayed by the rotating nozzle from all directions to the surface of the personnel and materials, effectively and quickly remove the dust particles carried by the surface, and the air with dust particles is then filtered by the middle school and high efficiency filter and re-circulated to the air shower filtration area.

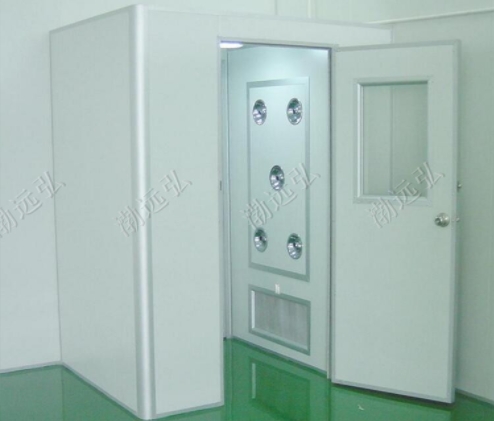

Air shower room definition:
The AIR SHOWER is a necessary passage into the clean room, which can reduce the pollution problems caused by entering and leaving the clean room.
Air shower room is a kind of local purification equipment with strong versatility, which is installed between clean room and non-clean room. When people and goods want to enter the clean area, they need to be blown by the air shower, and the clean air blown out can remove the dust carried by people and goods, and can effectively block or reduce the dust source into the clean area.
Air shower function:
1. The front and back doors of the air shower room/cargo shower room are electronically interlocked, which can also play the role of an airlock to prevent unpurified air from entering the clean area.
2. Blow the surface of objects entering the clean room to prevent the floating dust and hair on the surface of personnel and objects from being brought into the clean workshop.
Air shower classification content (key content)
(1) Functional classification:
1, personnel air shower room
2. Cargo air shower room
(2) The number of personnel points
1. Single air shower
2, double type air shower
3. Multi-channel air shower
(3) Open the door form:
1, manual single door
2, manual double door
3, automatic induction translation door
4, induction fast rolling door
(4) Industry categories:

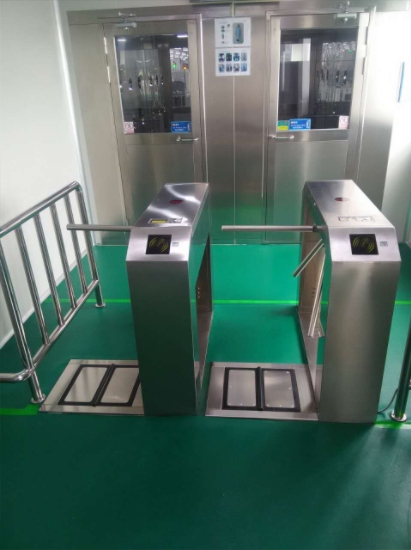

1, access control card air shower
2, explosion-proof air shower
3. Spray water shower room
4, anti-static air shower room
5, electric heating air shower
6. Assembly line air shower room
(5) Classification by material:
1, steel paint air shower room
2, stainless steel air shower room
3, all stainless steel air shower room
