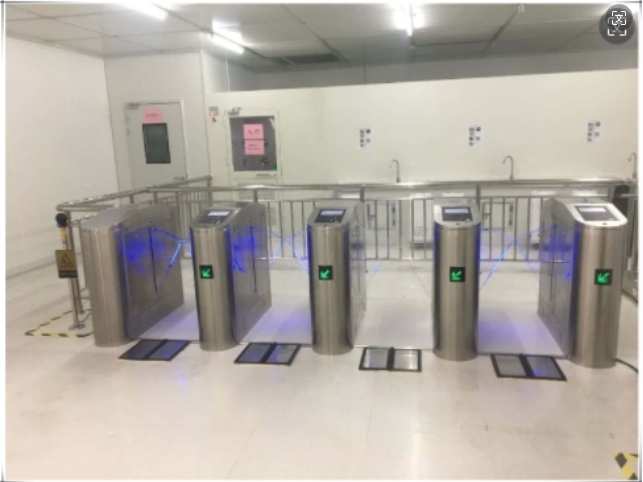

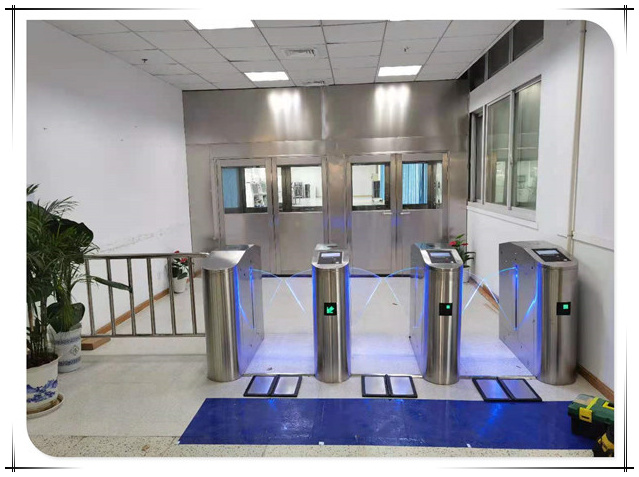

Aegir50556 Bo Yuanhong ESD anti-static wing gate digital display intelligent network access control system

AEGIR50556 Electrostatic meter Description:
AEGIR50556 Intelligent electrostatic tester, used to test whether the electrostatic bracelet, electrostatic ankle bracelet to meet the standards of electrostatic protection tools, and combined with personnel identification card to generate electronic files uploaded to the server, convenient customer audit and production department management, AEGIR50556 is a precision test instrument, need to be corrected regularly.

Electrometer features:

1. Support network communication, can upload 60,000 records in less than 14S

2. Online upgrade through the network (cross-domain upgrade)

3. All parameters are set on a PC and can be controlled remotely

4. With perpetual calendar accurate timing, can be automatically timed through the network

5. 60,000 brush card records, 10 million blacklist capacity, and power failure data is not lost

6. Abundant I/O ports for controlling other external devices

7. Used by large enterprises and tested by mass data, the performance is stable and reliable

Basic specifications of electrometer:

Physical parameters of electrometer:

Environmental parameters of electrometer:

Measuring standard of electrometer:

Wing brake standard product features:

1) With fault self-test and alarm prompt function, easy to maintain and use;

2) The operating status of the device can be programmed through the built-in small press disk on the main control board;

3) Mechanical structure, induction dual anti-pinch function, in the process of resetting the telescopic arm encountered resistance, automatically stop or the motor stops working within the default time, reset again after the default delay (until reset), and the force is very small (≤2Kg);

4) Sound and light alarm function: including illegal entry, trailing alarm;

5) Anti-impact function, when the opening signal is not received, the swing arm automatically locks;

6) Telescopic arm synchronization function;

7) With automatic reset function, after opening the gate, if there is no passage within the specified time, the system will automatically cancel the user's permission to pass, and the standard is automatic reset 5 seconds after opening;

8) The channel opens automatically after power failure, and closes automatically after power failure; Low motor noise

9) Can be connected with a variety of reading equipment, receive relay switch signal work;

10) One-way or two-way control personnel access;

11) Remote control and management can be achieved directly through the management computer;

2.2 Extendable functions:

1) Counting function;

2) Chassis lengthening, telescopic arm material selection.

3， Main structure and configuration.
◇ 2 standard chassis (inclined plane arc type on both sides of the chassis)

◇ 2 telescopic arms (color optional)

◇ Main control board 2 pieces

◇ 2 transformers

◇ 2 motors

◇ 2 sets of movement and transmission parts

◇ Infrared beam 3 pairs

◇ 2 alarms (lights)

◇ Direction indicator board 2 (standard) (can also be configured according to demand)
4, standard technical parameters

◇ Chassis size: 1200 L *300 W *1000 H (MM)

◇ Telescopic arm length: 285mm

◇ Maximum channel width: 600mm

◇ Weight: 140Kg

◇ Chassis material: Domestic standard (304) stainless steel

◇ Drive motor: DC brush motor (24V)

◇ Input interface: relay switch signal or 12V level signal or 12V pulse signal with pulse width > 100ms, driving power > 10mA

◇ Normal service life: 3 million times

◇ Communication interface: RS485 standard, communication distance: 1200 meters

◇LED indicator: 2

◇ Card window: 2

◇ Access port :4

◇ Speed: 30-40 people/min

◇ Gate opening and closing time: 1 second

◇ Time required to enter the traffic state after power-on: 3 seconds

◇ Automatic reset time after failure: 10 seconds

◇ Working environment:

Indoor, outdoor (shade)

Temperature: -10℃ -- 50℃

Relative humidity: ≤90%, no condensation
