Function characteristics and technical parameters of ESD wing brake
Product Overview:

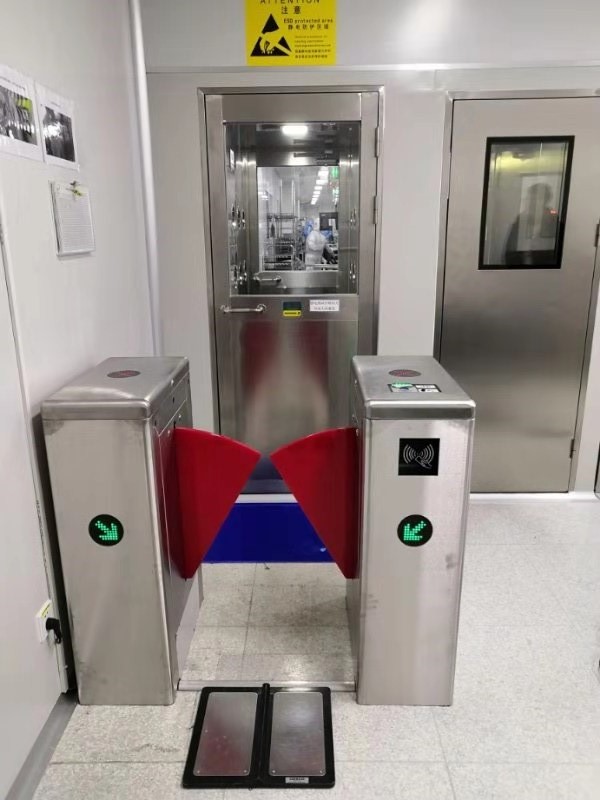

Intelligent wing gate (block gate) is mainly for personnel entrance control and management of high-tech products, is the upgrade of intelligent three-roll gate and swing gate, the equipment will mechanical, electronic, microprocessor control and integration of electronic ticket system, access control and attendance system, parking lot system, anti-static, fingerprint, palm print, iris and other biometric identification system integration and application.
Functional features:
1. With fault self-test and alarm prompt function, easy to maintain and use.
2. You can program the running status of the device through the built-in button on the main control board.
3. Mechanical structure, induction dual anti-pinch function, in the process of resetting the telescopic arm encountered resistance, automatically stop or the motor stops working within the default time, reset again after the default delay (until reset), and the force is very small (less than or equal to 2kg)
4. Sound and light alarm function: including illegal entry, trailing alarm
5. Anti-impact function, when there is no opening signal, the swing arm automatically locks
6. Synchronization function of telescopic arm
7. With automatic reset function, after opening the brake. If the user does not pass within the specified time, the system will automatically cancel the user's permission to pass this time, and the standard is automatic reset 5 seconds after opening
8. The channel opens automatically after power failure, and closes automatically after power failure; Low click noise
9. Can be connected with a variety of reading equipment, receive relay switch signal work
10. One-way or two-way control personnel access
11. Remote control and management can be achieved directly through the management computer
Technical parameters:
Chassis material: domestic standard (No. 304) stainless steel
Telescopic arm length: 285mm
*** Large channel width: 600mm Standard: 550mm
Drive motor: DC brush motor 50W/24V
Normal service life: 5 million times
Operating voltage: AC220+/-10%V 50+/-10%HZ
Temperature: -10 degrees Celsius --50 degrees Celsius
Relative humidity: less than or equal to 90%, no condensation
Working environment: indoor, outdoor (shade)
Speed: 45 people/min (normally open), 30-40 people/min (normally closed)
Gate opening and closing time: 1 second
Time required to enter the passable state after power-on: 3 seconds
Automatic reset time after failure: 10 seconds
Communication interface: RS485 standard distance is less than or equal to 1200 meters
Input interface: dry contact signal or 12V level signal or 12V pulse signal with pulse width equal to 100ms, driving current greater than or equal to 10mA
Scope of application:
◇Station, wharf, construction site, school, supermarket entrance control management
◇Exhibition, natatorium, tourist attractions and other ticketing entrance control management
◇Enterprises and public institutions attendance, access control, consumption air access control management
◇Special air access control
20686 Human ESD electrostatic testing instrument
First, instrument characteristics:
1. This product features outstanding ESD equipment can be quickly tested, three independent devices (left shoe, right shoe, wrist strap) to complete ESD detection.
2.LCD liquid crystal display, resistance digital display range (work shoes 0.75MΩ-99.99MΩ; Wrist 0.75MΩ-9.999MΩ), lower than 0.75MΩ value display LO, shoes higher than 100MΩ display HI; A value higher than 9.999MΩ indicates HI. Alarm function, automatic range conversion.
3. If the three test channels are within the test range, there is an immediate door opening signal output to control the three-roll brake, air shower or other electric lock doors.
4. There are employee and customer modes, and the employee mode has EM card display name, card number, date and time, and four ESD modes as follows:
A: Use the card to test the wrist strap and shoes before opening the door;
B: The door can be opened only after the card test shoes are qualified;
C: Open the door only after the wrist strap passes the card test;
D: Swipe the card button to open the door directly.
Customer mode does not need to swipe the card, only the wrist strap and shoes test qualified party can open the door.
5. Automatically store records and ESD test data (except customer mode), recording information up to 10,000 pieces.
6. Import the personnel file from the computer software initially, download the registered name, card number, ESD mode information to the tester; (Registration information also reached 10,000). And by the supporting software to extract the swipe time, card number and ESD test data records, while clearing ESD tester records. SQLServer's background database management, intelligent sorting and query by supporting software, and export or generate information to Excel for typesetting and printing daily reports and monthly reports.
7. This tester has the function of attendance, access control, ESD test, is a three-in-one instrument.
8. The supporting software can control 200 three-in-one ESD tester on the computer. Software upgrade is available according to customer requirements. It is a high-tech intelligent anti-static necessary equipment. Designed in strict accordance with ESD safety performance, in accordance with ANSI ESD S20.20 "6.1.3.2" ESD standard.
9. This series of testers can add voice prompt function according to customer requirements.
10. The time and date of the ESD testing machine are calibrated by the computer supporting software, and the status of the extension is monitored online.
11. Intelligent timing or real-time reading of online instrument ESD data, can be automatically uploaded to the computer database.
12. Instrument number, software title, window color, background picture can be changed by the customer.
13. The instrument uses TCP/IP to communicate with the computer, and the communication distance can reach 1200 meters. It can also share the database of multiple computers on the local network.
Second, technical parameters:
Instrument size: (W)166mmx(L)96mmx(H)40mm left shoe setting value: 750kΩ-100MΩ
Pedal size: (W)400mmx(L)420mmx(H)20mm right shoe setting value: 750kΩ-100MΩ
Adjustable distance of movable support :>120mm Wrist setting: 750kΩ-10MΩ
Total weight 7.5kg
Test accuracy ± 10-20%
(This parameter is the national standard) the conductive shoe is 100kΩ-35MΩ according to the user's conditions of use declaration correction.
Three. Mounting bracket steps:
(1) Insert the bottom of the distribution support on the pedal through the top and then insert it on the instrument.
(2) Three sets of M8x30mm to fix the support and pedal.
(3) Insert the distribution wire to the opposite connector of the instrument.
(4) The instrument fixing screw M3x15mm two sets of relative position fixed.
(5) Lock the height of the support with the support lifting lock button.
Please insert the power adapter, set the switch to ON, static DC current is 9V-12/80mA.
⑴LCD display screen.
(2) Swipe Card indicator (Card).
(3) Access control indicator (Pass).
⑷ Communication indicator (Com).
5) Wrist strap 4 interfaces.
⑹ Swipe card area.
⑺ Tests the button.
The two feet respectively step on the opposite metal pedal, wear the wrist strap into or insert the wrist wiring port, and gently press the finger on the metal test button to know at a glance whether the ESD equipment is qualified and how much the resistance value is. Release the finger to test. After the button, as long as the strength of both feet is even back to the idle screen, continue to repeat waiting for credit card.
Four, precautions:
Do not wear gloves or press the metal test button with your fingernails. Do not touch the wrist binding post or wrist buckle during the test. Keep the pedals dry and clean. It is strictly forbidden to dismantle the machine for maintenance!
